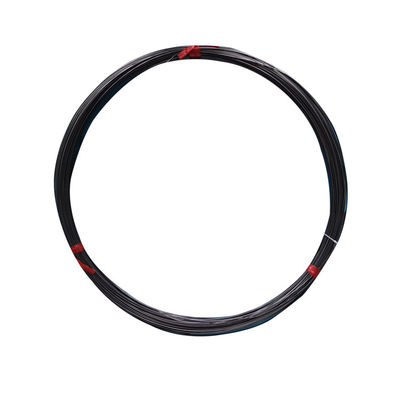

K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath

Ich bin online Chat Jetzt
Bescheinigung
China Ohmalloy Material Co.,Ltd zertifizierungen
China Ohmalloy Material Co.,Ltd zertifizierungen
Ich suche nach langer Zeit der Chromnickelplatte, und erfolgreich gekauft es von Ohmalloy-Material. OHMALLOY erbringen wirkliche gute Dienstleistung im Legierungsservice und können mir immer helfen, wenn sie die korrekte Widerstandlegierung finden.

—— Mike-Geschirr

OHMALLOY kann provie ich nur Legierungsdraht 1.0mm mit kurzer Zeit, das 1kg Kovar ist wirklich erstaunlich. Danke

—— Janey

Wirklich Berufs im Thermoelementdraht und im Kabel, was ich gerade wünsche, können von OHMALLOY erhalten

—— Chris

Emaillierter Constantan 0.08mm, erwarte ich nie, nur 2kg von ihm zu erhalten. Aber OHMALLOY-Versorgung es zu mir mit guter Qualität. Gott Jesus! Solch ein zuverlässiger Lieferant vom Porzellan

—— Aaron

K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath

K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath

Großes Bild :  K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath Bestpreis

Produktdetails:
Herkunftsort: China
Markenname: Ohmalloy/OEM
Zertifizierung: SGS/RoHs
Modellnummer: SP-MI
Zahlung und Versand AGB:
Min Bestellmenge: 100 Meter
Verpackung Informationen: Spule + Papierkarton + Holzpalette
Lieferzeit: 2-5 Arbeitstage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, , MoneyGram
Versorgungsmaterial-Fähigkeit: 10000 Stück / Monat
Ausführliche Produkt-Beschreibung
Modellnummer: MI-Thermoelementleitung Markenname: Ohmalloy
Leitermaterial: Ni90Cr10/ NiSi Isoliermaterial: Mgo
Jacke: N06600 Anwendung: Industrieller Temperaturtest
Farbe: Silber Mindestbestellmenge: 100 Meter

K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath



Product Name Mineral insulated metal sheathed thermocouple cable
Type K, J, T, E, R, etc
Insulation material 99.6% high purity MgO
Core number 2 wires, 3wires, 4wires, 6wires
Sheath Materials SS304, SS321,SS316L,SS310S, SS347, INCL600, ETC.
Diameter(mm) From 0.25mm to 12.7mm
Application Connecting with thermocouple and instrument machine



K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath 0



Structure:

Custom made units as per exact requirements.


K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath 1



Ni Cr

-Konstantan

EK E SS304 0.5-1.0 400
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Fe - Konstantan JK J SS304 1.0 300
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Cu - Konstantan TK T SS304 1.0 -200-100
SS321 1.5-3.2 100-200



K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath 2

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
